[GCP]Google Apps Scripts 串接 GCP BigQuery

Google Apps Scripts 串接 GCP BigQuery

Google Apps Scripts

Apps Script是Google開發的腳本平台，用於在G Suite平台中進行輕量級應用程序開發。可以簡單的後端功能也就能輕鬆實現了，這篇將會介紹如何使用 Google Apps Script，實現串接Cloud BigQuery

"Apps Script is a serverless JavaScript runtime for G suite automation, extension, and integration."
It is server-side JavaScript, similar to Node.js, but focuses on tight integration with G Suite and other Google services rather than fast asynchronous event-driven application hosting. It also features a development environment that may be completely different from what you’re used to. With Apps Script, you:

Develop in a browser-based code editor but can choose to develop locally if using clasp, the command-line deployment tool for Apps Script
Code in a specialized version of JavaScript customized to access G Suite, and other Google or external services (via the Apps Script URLfetch or Jdbc services)
Avoid writing authorization code because Apps Script handles it for you
Do not have to host your app—it lives and runs on Google servers in the cloud

▌實作步驟

登入Google Apps Scripts，建立一個新的App scripts
啟用 GCP BigQuery API
編寫script：BigQuery code
驗證內容 Apps Scripts

1. 登入Google Apps Scripts，建立一個新的App scripts

開啟一開新專案
建立一個為為first-appscript project

2. 啟用 GCP BigQuery API

啟用API設定有二個地方，第一是GCP API & Service

第二是App Script中的 Advanced Google service

設定 App Script “Advanced Google service”
BigQuery API → on
GCP API & Service → API enabled

3. 編寫Script：BigQuery code

這個是Google提供的範本，我們僅需要修改二個部份

GCP Project ID： var PROJECT_ID = '<YOUR_PROJECT_ID>'
實際跑BigQuery code：function runQuery()

    /**
     * Copyright 2018 Google LLC
     *
     * Licensed under the Apache License, Version 2.0 (the "License");
     * you may not use this file except in compliance with the License.
     * You may obtain a copy of the License at apache.org/licenses/LICENSE-2.0.
     *
     * Unless required by applicable law or agreed to in writing, software
     * distributed under the License is distributed on an "AS IS" BASIS,
     * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
     * See the License for the specific language governing permissions and
     * limitations under the License.
     */

    // Filename for data results
    var QUERY_NAME = "Most common words in all of Shakespeare's works";
    // Replace this value with your Google Cloud API project ID
    var PROJECT_ID = '<YOUR_PROJECT_ID>';
    if (!PROJECT_ID) throw Error('Project ID is required in setup');

    /**
     * Runs a BigQuery query; puts results into Sheet. You must enable
     * the BigQuery advanced service before you can run this code.
     * @see http://developers.google.com/apps-script/advanced/bigquery#run_query
     * @see http://github.com/gsuitedevs/apps-script-samples/blob/master/advanced/bigquery.gs
     *
     * @returns {Spreadsheet} Returns a spreadsheet with BigQuery results
     * @see http://developers.google.com/apps-script/reference/spreadsheet/spreadsheet
     */
    function runQuery() {
      // Replace sample with your own BigQuery query.
      var request = {
        query:
            'SELECT ' +
                'LOWER(word) AS word, ' +
                'SUM(word_count) AS count ' +
            'FROM [bigquery-public-data:samples.shakespeare] ' +
            'GROUP BY word ' +
            'ORDER BY count ' +
            'DESC LIMIT 10'
      };
      var queryResults = BigQuery.Jobs.query(request, PROJECT_ID);
      var jobId = queryResults.jobReference.jobId;

      // Wait for BQ job completion (with exponential backoff).
      var sleepTimeMs = 500;
      while (!queryResults.jobComplete) {
        Utilities.sleep(sleepTimeMs);
        sleepTimeMs *= 2;
        queryResults = BigQuery.Jobs.getQueryResults(PROJECT_ID, jobId);
      }

      // Get all results from BigQuery.
      var rows = queryResults.rows;
      while (queryResults.pageToken) {
        queryResults = BigQuery.Jobs.getQueryResults(PROJECT_ID, jobId, {
          pageToken: queryResults.pageToken
        });
        rows = rows.concat(queryResults.rows);
      }

      // Return null if no data returned.
      if (!rows) {
        return Logger.log('No rows returned.');
      }

      // Create the new results spreadsheet.
      var spreadsheet = SpreadsheetApp.create(QUERY_NAME);
      var sheet = spreadsheet.getActiveSheet();

      // Add headers to Sheet.
      var headers = queryResults.schema.fields.map(function(field) {
        return field.name.toUpperCase();
      });
      sheet.appendRow(headers);

      // Append the results.
      var data = new Array(rows.length);
      for (var i = 0; i < rows.length; i++) {
        var cols = rows[i].f;
        data[i] = new Array(cols.length);
        for (var j = 0; j < cols.length; j++) {
          data[i][j] = cols[j].v;
        }
      }

      // Start storing data in row 2, col 1
      var START_ROW = 2;      // skip header row
      var START_COL = 1;
      sheet.getRange(START_ROW, START_COL, rows.length, headers.length).setValues(data);

      Logger.log('Results spreadsheet created: %s', spreadsheet.getUrl());
    }

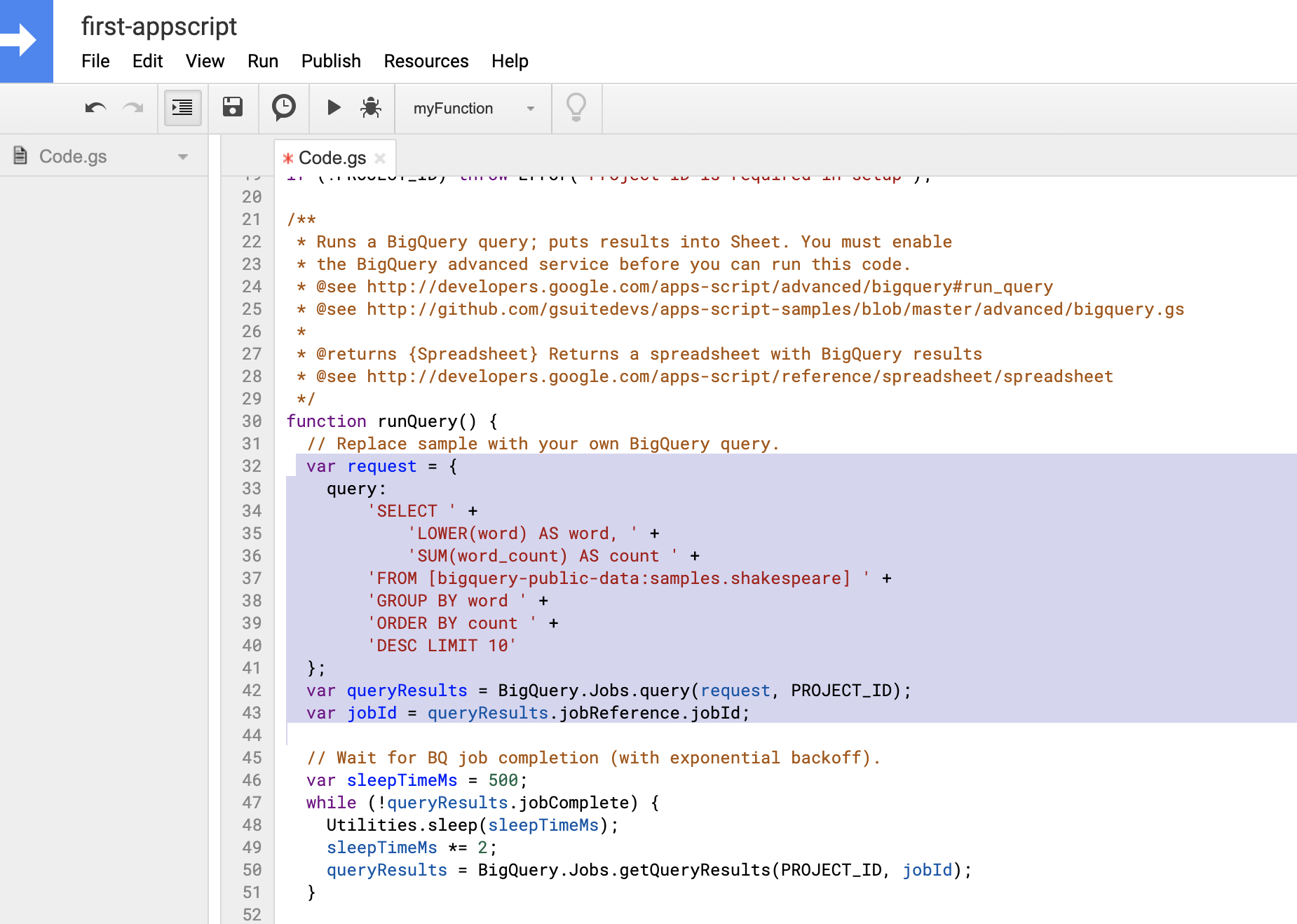

- 貼上script，編輯BigQuery query code
- 命名為[`bq-sheets-slides.gs`](http://bq-sheets-slides.gs/)

    ![ Untitled%205.png](Untitled5.png)

- 主要BigQuery query cod內容

    往public-data拿資料samples.shakespeare(莎士比亞作品)
    擷取作品中出现频率最高的10個單字，並依歡迎程度降冪排序

    SELECT
        LOWER(word) AS word,
        SUM(word_count) AS count
    FROM [bigquery-public-data:samples.shakespeare]
    GROUP BY word
    ORDER BY count
    DESC LIMIT 10

4. 驗證內容 Apps Scripts

第一次 run
- review permissions 系統會再驗證一次user/pwd
- 執行完會產出Google sheet


Google Drive

去看看產出名為 Most common words in all of Shakespeare's works 的sheet
檢視一下檔案內容，看到計算出的結果

驗證從原本的bq 也有一樣的結果

同樣的Query，直接在BigQuery執行


Query history

從query history可以看到剛剛的執行結果
第二次直接使用BigQuery的執行結果也出現在history中

Reference:

[1] https://www.qwiklabs.com/focuses/3565?parent=catalog

[2] https://script.google.com/u/0/home
